Lab 13 - April 23, 2015 - Magnetic Potential Energy Lab

Lab 13:
April 23, 2015
Brandon Elder

Magnetic Potential Energy Lab

Purpose:
The purpose of this lab is to verify that the conservation of energy applies to this system of an air track glider and to determine an equation to represent the magnetic potential energy in the system, since this is not easily definable.

Background Info and Set-Up:

Assemble the apparatus as shown in Fig. 1. The apparatus consists of an air track with air hose and a glider that rests on the rack. The glider has a magnet at the end and also a magnet at the end of one side of the air track. The magnets have the same polar ends pointing toward each other so that they do not attract each other, they will push each other away when they get close. Energy will transfer into these magnets and this will become the magnetic potential energy. This is part of what we will be measuring in this system, along with the kinetic energy, to determine that the energy is conserved. We will be measuring this by placing a glider on an airtrack and turning the air on to force the glider as close to the other magnet as possible. The air will be cut off and then the distance they are away from each other will be measured.

Fig. 1 The apparatus with the air glider on the
track and the magnets at both ends.
Fig. 1a The freebody diagram
shows that the F equals mgsin(theta).

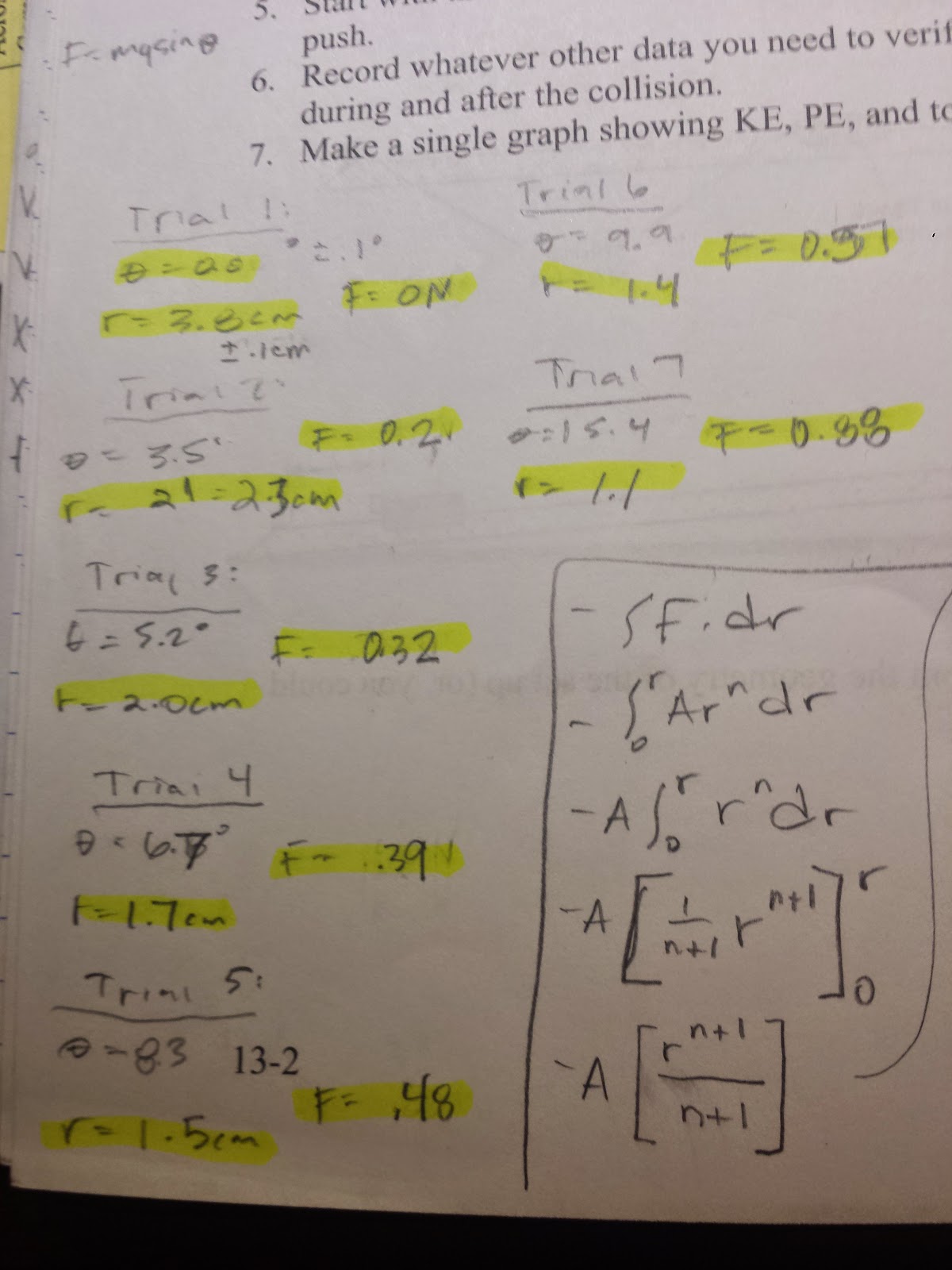

Fig. 1b The data used for theta and r
to plug into Logger Pro.
The first step is to level the track. Next, tilt the track at various angles to measure the distance that the two magnets are away from each other, the separation distance r. This data will be recorded along with the magnetic force F. The separation distance and the force will be plotted and then a best fit line will be applied to determine the relationship and the slope. We can safely assume that this will be a power function therefore giving us some sort of power equation F=Ar^n. A and n will be taken from the best fit graph (see Fig. 2). F can be determined by drawing a free body diagram (see Fig. 1a). The velocity will be fixed as the cart approaches the magnet on the end of the track and it will eventually stop moving as it gets as close to possible to the magnet that the current angle will allow for. The kinetic energy of the cart is then converted into the magnetic field between the two magnets and is the magnetic potential energy. As the car is pushed back away from the magnets it is converted back into the potential energy in the air gliders. To the side is the data (see Fig. 1b) that was used and plugged into LoggerPro to calculate the graph from Fig. 2

Fig. 2 The best fit line of the graph of the separation distance and the Force. This line gives us the values for A and n.

Now we have an equation for the force between the magnets as a function of their separation, F(r). Integrating this will give us an equation for the magnetic potential energy, which we will write as U(r) (see Fig. 3).

Fig. 3 The integral of F(r) gives us an expression
for the magnetic potential energy U(r).



Fig. 4 The graph showing that the energy is conserved. The top line is the graph of the total energies, the kinetic plus the magnetic. The second line under the peak of the total energy line represents the magnetic potential energy. The bottom line is the that represents the kinetic energy in the glider. It makes sense that at the point where the glider can no longer get any closer to the other magnet, the kinetic energy is transferred into the magnetic potential energy and this is where the middle of the graphs are, the spike and drop.

Uncertainties:
There were many sources of error in our data and alot of this is evident in the graph. Many uncertainties were present, in the measurements (+/- .1 cm), in Logger Pro when it gave us the best fit graph of F(r), the device used to measure theta was accurate to +/- 0.1 degrees.

Conclusion:
We wanted to show that the conservation of energy is true for our system. We had to determine a function that we could integrate to get the magnetic potential energy as a function of how close the magnets got to each other. With that function, U(r), we can then verify that our original purpose was true, which was that the energy is conserved. According to our final graph, this lab shows us that we are correct (see Fig. 4).


Monday, April 20, 2015

Lab 14 - April 20, 2015 - Physics 4A Impulse-Momentum Activity

Lab 14:
April 20, 2015
Brandon Elder

Physics 4A Impulse-Momentum Activity

Purpose: To show that the impulse can be calculated as the area under the force vs. time graph and that the impulse applied to an object equals the change in momentum of that object.

Definitions:
Impulse combines the applied force and the time interval over which that force acts. The impulse: J is J=F(change in t). On a graph plotted for F and t this would look like the area under the graph. Therefore the impulse is the area under this graph. The area under the graph will equal the the impulse for a constant applied force and for a varying applied force.

Impulse applied to an object equals the change in momentum of that object, in one dimension,
J = change in p (momentum) = Integral of F * dt.

Set-Up: Arrange equipment and apparatus to reflect the image shown in Fig. 1. Perform all calibrations and zeros accordingly for the motion detector and the force sensor, as per all previous labs. It is important to note that during the set up you want to ensure that the stopper of the moving cart hits the plunger of the stationary cart when the moving cart gets close to the end of the track.

Fig. 1 Set up of apparatus. Cart, with a shield attached to let the motion detector know where it is, a force sensor mounted sideways on top of the cart, a mounted cart with a springy bit, and a track for the unmounted cart to roll on.
Experiment 1: This first experiment will be quick. With logger pro recording data and a graph of force vs time displayed, observe and record. The graph will show that the force is not constant and that the collision is not an elastic collision. Some things to note before recording the official data would be to make sure that the cords are not going to be interfering with any of the readings as this would skew the data. Remember to calibrate the force sensor holding it vertically then to zero the sensor when it is attached horizontally. Practice pushing the cart toward the plunger and watching it bounce to observe the best possible positioning and placement. Zero the force probe and begin graphing. Once you hear the click, give the cart a push towards the mounted plunger, observe as it collides. The resulting graph should look like Fig. 2.

Mass of the Cart with Force Probe: 0.74 kg

Fig. 2 The graph of the first experiment. Here the area under the force vs. time graph is equal to 0.4065
The collision process takes less than half a second as you can see from the graph. The force exerted on the sensor just before and after the collision is zero. The magnitude of the force on the cart is maximum when it is collided the fullest with the spring plunger.

According to the impulse momentum theorem, the Integral of F * dt equals the mass * (velocity final - velocity initial).

Therefore the area under the graph above, 0.4065 should be VERY close if not equal to the difference in our velocities before and after the collision multiplied by the mass.

The velocity difference from before and after the collision multiplied by the mass of the cart is 0.4514. These numbers are very close to each other and this experiment proves that the impulse momentum theory is correct.

Fig a2 The mass of 500 g was added to the cart.
Experiment 2: For this experiment we collected data similar to above but this time we added weight. We added 500 g to the cart (see Fig a2).  The total new weight of the cart was: 1.24 kg. The cart was collided against the spring plunger and the graph was collected, (see Fig. 2 below). We ran two trials and both times the numbers were almost equal and only a few hundredths of a decimal place off. The second trial resulted in an area under the graph of .7156.




Fig. 2 The area under the graph of force vs. time for the larger mass on the cart was 0.7156. The velocity graph was used to determine the velocity before and after the collision.

The velocity before collision reading: 0.318 m/s
The velocity after collision reading: -0.265 m/s

The difference of those two values multiplied by the mass of the cart is equal to 0.72292. As you can see, that is a difference of only 0.00732 or about a little more than a 1 percent difference. The experiment again goes to show that the impulse-momentum theorem holds true to a larger weight being placed on the cart.

Experiment 3: This experiment will now show that the theorem holds true for an inelastic collision. The experiment will remove the spring plunger from the side and replace it with a block of wood that has a chunk of soft clay attached to the wood. There will be a nail placed on the edge of the cart and it will stick into the clay when the cart is released. The experiment was ran and the following data was collected:

Area under the graph: 0.5709 N*s
Velocity before collision: 0.428 m/s
Velocity after: 0 m/s
Mass of cart (with nail added) 1.253 kg

The difference in velocity multiplied by the mass in the cart is 0.536 and the area under the cart is .5709. This time the resulting numbers are off by around 5 to 6 percent. This margin of error has increased since the last experiment. However, the answer is still in the ball park and once again shows us that the theorem is correct.

Fig. 2 The area under the graph of force vs. time for the larger mass on the cart was .5709. The velocity graph was used to determine the velocity before and after the collision.
Conclusion:

The numbers were not exact, but within 1 percent during one of the experiments so that is close. The object of the experiment was to show that the impulse-momentum theorem (as stated earlier) is true. We ran tests of a cart

Tuesday, April 14, 2015

Lab 12: Conservation of Energy - Mass-Spring System

Lab 12:
April 14, 2015
Brandon Elder

Conservation of Energy - Mass-Spring System

Purpose:
To observe the energy in a system, to show that the energy is conserved by determining all the different places that energy is used in the system and to sum those energies. The kinetic and potential energy of the mass, the kinetic, potential, and elastic energy of the spring, and the gravitational potential energy of the spring will be totaled.

Set-Up and Procedure:
Mount a table clamp with a vertical rod to the table, then mount a horizontal rod to the vertical rod. From that horizontal rod a spring will be attached with a mass hanging from the end of it. A force sensor will be required at first along with the motion detector, so Logger Pro will also be needed to be setup. Reference Fig. 1 for proper set up of the experiment. The spring's natural length will be measured and then the stretch position will be measured in order to determine the constant of the spring. Once the lab is set up, the actual experiment is very short. We will be measuring the distance that the spring oscillates back and forth and the velocity at which this takes place. This will help us determine the kinetic energy.

Fig. 1 The spring here is being stretched
(with mass) above the motion detector while
connected to the force sensor.
Stretch: Record the position reading when the spring is un-stretched. This value will be used to calculate a column for the "stretch". The unstretched position minus the stretched position will determine the stretched length. Our experiment's data was: 0.618 m (unstretched).

Determine "k":  The slope of the Force vs postion graph will be the k value. The mass is pulled down slowly to stretch the spring. Logger Pro will record the force that is applied in stretching the spring. This data gives us the necessary info to determine the k value from the graph. This will be important later for when we set up the calculated columns. Our "k" value was: 29.32 (see Fig 1a).

Fig 1a Our chart of Force vs. Position. The slope of the best fit line gave us our K value for the spring.


Measure the mass of the spring and the mass of the hanging weight as well as the hanger that is used to hang the mass on. Record these values for insertion into Logger Pro later.

Determine calculated columns for Logger Pro:

Stretch: Use the information above to caluclate the column for stretch.

Elastic Potential Energy in the Spring: 1/2 * "k" * (stretch)^2. K is a value that will be inputted based on the calculations above. Stretch is a column that will be referenced from above.

Gravitational Potential Energy of the Mass: mass (hanging) * gravity * Position. Position will be the column measured in Logger Pro for position.

Kinetic Energy of the Mass: 1/2 * Mass (hanging) * velocity^2. The velocity will be a column that is automatically calculated by Logger Pro during the experiment.

Kinetic Energy of the Spring: In order to determine this it is a three step process. First, choose a representative piece (dm) of spring and write an expression in terms of dy. dm/M = dy/L. Therefore, dm = M/L * dy. Next, write an expression for the KE of that little piece. (1/2)(M/L *dy)(y/L*V(end))^2. This is equivalent to the equation 1/2*m*v^2. The third step requires you to sum the KE's of all the DM's in the spring. This formula will reduce to (1/2)(M(spring)/3)V(end)^2. This is the formula that will be input into Logger Pro.

Gravitational Potential Energy for the Spring: The same steps as above will be followed to derive the formula for GPE spring. The formula that will be input is: Mass (spring)/2 * gravity * y (end of spring). The y value will be the position column from the experiment recorded in Logger Pro. The formula is derived in Fig. 2.


Sum of All Energy: This column will be a sum of all the columns created above. This will be the column that we use on the graph to show that the energy is conserved in this system.


Fig. 2 The formula derived for the Gravitational Potential Energy of the Spring.

Now that all columns are calculated and prepared for data collection run the experiment. Pull the spring down with the mass on the hanger about 10 cm and let go. Set up a graph to show all of the columns from above on it. They will all be a bit wavy (see Fig. 3).


Fig. 3 All the columns added are shown on the graph here. The top graph (purple) is the sum of all the energy. This graph should be a straight line as we were trying to show that energy is conserved and this is the result of all our energy columns being summed up.

Conclusion:
According to the graph above the GPE of the mass was at it's lowest when the Elastic PE of the spring was at it's highest. Also, when the GPE of the mass was at it's highest, the Elastic PE of the spring was at it's lowest. This makes sense because when the string is fully stretched the mass would have very little gravitational potential energy. As is evident by the above graph, the energy is conserved, even though the individual readings have giant peaks and valleys, the overall sum is relatively staying steady. No amount of energy left the system, and no amount of energy entered the system. All energy was accounted for. Some slight error could have been introduced through errors in the accuracy of the readings of the spring constant measurement. The height may not have been perfectly calibrated with the motion sensor and the spring itself isn't perfectly out of the box in brand new ideal conditions.



Thursday, April 9, 2015

Lab 11 - April 8, 2015 - Work-Kinetic Energy Theorem Activity

Lab 11:
Brandon Elder
April 8, 2015

Work- Kinetic Energy Theorem Activity

Purpose:
This experiment is three-part, but the main purpose is to be able to measure the work done by a spring on a system by stretching a spring through a measured distance and then graphing the data to determine the relationship between work done and the kinetic energy. In theory, the work done on the spring should equal the amount of kinetic energy of the cart. Analyzing the graph and the area under the curve will give the amount of work done.

Apparatus Set-Up:
Fig. 1 The apparatus set up with the cart connected to the force sensor and the motion
detector placed on the ramp at the far end to observe the cart.
Set up a ramp on the counter top with a force probe, motion detector, and spring. A cart will be placed on top of the ramp and connected to the force probe with the spring. The motion detector will be placed at the opposite end of the ramp (see Fig. 1). Connect the force probe and motion detector to Logger Pro as usual. Some things to note would be that the spring needs to be horizontal when in it's relaxed state in between the cart and the force sensor with no obstruction. If the spring is not horizontal, then some of the force measured when the cart is pulled will be given in the y-direction and will not result in an accurate reading. The file to open in LoggerPro is the L11E2-2 (Stretching Spring), as this will display the force vs. position axes. Finally, the last important things to accomplish during the set-up would be to ensure that the force probe and motion detector are zeroed properly with the spring in the loose state and not stretched. Verify the motion detector is set to "reverse direction" so that as the cart is moved toward the detector, the position info will be recorded in the positive direction. You are ready to perform the experiments.

Considerations:
Fig. A Graphs of constant vs non-constant forces
being applied to the cart on a horizontal surface.
A constant force applied will result in a linear graph of F vs. x (position or stretch of the spring) while a non-constant force applied will result in a non linear graph (see Fig. A). Work is equal to the force multipled by the displacement which is normally multiplied by cosine of the angle between. However, since we are using a flat surface, the factor of cosine multiplied by 180 results in 1, thereby leaving us with the work being equal to the force times the displacement.


      Fig. 2 Equation for Kinetic Energy.
Experiment # 1 & 2:
Collect data in logger pro while someone pulls the cart slowly towards the detector until the spring has been stretched approximately 1 meter. The data will then be ready for viewing on the graph and table in logger pro. From observing the table, it is evident that the velocity, position, force, and time have all been calculated.  The next step is to add a calculated column that will define the kinetic energy. Kinetic energy is equal to k=.5*m*(v^2) (see Fig. 2). Since Logger pro automatically calculates the velocity, we create a calculated column for KE, using the formula for KE and inputting the meausred mass of the system, so that we can graph the KE vs position. We then added the KE to the y-axis of the graph so that force and KE were plotted on the y-axis were plotted against the position on the x-axis at the same time. The graph of the force needs to be integrated so that we can compare that value to the value of the KE graph at any point along the graphs. These values should be equal because the KE is equal to the area under the force graph (amount of work done). Fig 2a and 2b show different data points and the values for both the KE and the integrated values or amount of work.

Fig. 2a The integral under the force graph is equal to 0.3493 m*N and the KE at the corresponding point on the KE graph is equal to 0.354 J.


Fig. 2b The integral under the force graph is equal to 0.3241 m*N and the KE at the corresponding point on the KE graph is equal to 0.331 J.

Experiment #3:
A video was shown in class that plotted the Force vs the stretch of a rubber band. We hand sketched a graph similar to the video graph (See Fig. 3). In the last few seconds of the video we are given the time, the change in position, and the mass of the system. The purpose here is to analyze the area under the graph to determine the work done. Then to compare this to the kinetic energy of the cart from the video using the formula for KE to show that the KE is equal (or very close) to the amount of work done on the cart. The calculated KE is shown in Fig 4. The amount calculates out to 23.88 Joules while the area under the graph equals 25.675 Joules. The area under the graph was an estimation from quickly observing the video but it is evident here that the theorem for work and kinetic energy holds true.

Fig. 3 The amount of work done in the system is the area under the graph of work vs stretch. The total work is equal to 25.675 Joules.
Fig. 4 The calculated KE here is equal to 23.88 Joules. This amount was calculated using the variables given to us from the video. This amount of KE is compared to the amount of work from above, under the graph, and it is evident that work is in fact equal to the amount of kinetic energy.

Conclusion:
The spring constant was established by analyzing the force applied to the spring and by evaluating that with the change in position of the spring. The formulas are in Fig. 5. The integral was taken of the graph to find the work done in stretching the spring. In experiment 2 we saw that the work done on the cart by the spring equaled its change in kinetic energy. The experiments proved the work-energy principle that relates work to kinetic energy change by stating that the work done by the net force on a system equals the change in kinetic energy.


Fig. 5 The formulas used to calculate the spring constant.


Tuesday, April 7, 2015

Lab 9 - April 7, 2015 - Centripetal Force with a Motor

Lab 9:
Brandon Elder
        Pic. 1 The apparatus set up in class by the instructor.
4/7/2015

Centripetal Force with a Motor

Purpose:
The purpose of this lab is to observe an apparatus swing a weight around the central shaft at a known radius and to create a model that properly relates theta and omega. We will be comparing the data we record from the experiment and comparing it to the values that we measure for omega and see how they compare.

Set-Up:
The set-up for this experiment was put together by the instructor in the class (see Fig. 1) for us to observe and record data as he performed the six different experiments. The apparatus was spun around at six different speeds. The time for the weight hanging from the string to swing around for ten revolutions was recorded each time. See Fig. 2 for all the important elements that need to be measured in order to compute for theta.



Fig. 2 The elements H, R, h, can all be measured by the
apparatus. The x, y, and theta will be calculated after the
experiments.


Measurements:
The H was measured to be 2 meters. The R was the distance from the center shaft to the string, this distance was measured to be 98 cm or 0.98m. It is important that this distance is not confused with the radius later on during the calculations. The lower case h varied between all the different experiments, so there was six different recordings. The time is also important to record. At each speed we recorded the amount of time it took to make 10 revolutions. This time was then divided by ten to determine the amount of time for one revolution. From the picture you can tell that the hand-drawn in x and y can be calculated with trig. Once all those elements are measured and calculated, the theta can be calculated. It is important not to lose track at this point of the purpose. We needed to determine a relationship between the angular speed and the angle theta. The model that can be derived for theta is in terms of theta, gravity, and the radius. This model was determined from the free-body diagram drawn of the mass hanging from the string (see Fig. 3). The sum of forces equations were also written down after observing the free body diagrams. The sum of forces in the y direction gave us a formula for mass. This can be seen in the top right corner of Fig. 3. This was plugged into the equation for the x direction and then rearranged to give us our final model for omega, the angular speed of our model. This model is seen in Fig. 4. It is again important to note here
that the r in this model is not the same as the R from earlier. The r in this model represents the radius from the central shaft to the mass being rotated. This r would be the sum of the R and the x that were measured earlier.
Fig. 3 Free body diagrams for the hanging mass. The
sum of forces equations are also written here.

Fig. 4 The model for omega in terms of theta.

Calculations:
The calculations for all the above elements were performed during class and recorded onto a sheet of paper (see Fig. 5). The equation from above is re-written down at the top of the picture. For each experiment, the time was recorded first. Then the h value was recorded. The h value was the height off the ground that the weight was for each experiment. This was then plugged into the triangle above it to help solve for the y value. The value of y is measured by taking h and subtracting it from the overall height, H, of 2 meters (200 cm) from earlier. This value was then plugged into the quadratic formula to determine the third side of the triangle, since we measured the length of the string in the beginning. The square root of the length of string squared minus the y value squared was the x value. Theta was then found by taking the inverse sine function of the x value over the length of string value. Finally, at the far right is the omega values. That would be our calculated values of omega based on the angle theta that we calculated from the experiment. The theta value that was just determined was plugged into our model from Fig. 4 and we wrote down our data for omega values.

Fig. 5 All recorded calculations for all the elements discussed above. Take note of the highlighted figures for the first
experiment. The same logic was followed for the next 5 experiments, I just highlighted the first one to help with clarity.
Fig. 6 The values of the measured omega using the time we
measured in class for one revolution and the values that
were calculated for omega from the experimental data used
to determine theta.
Finally, we must measure what the actual omega value from the experiment was. This is done by taking the formula highlighted in the top left of the picture in Fig. 5. The measured value was derived by dividing 2*pi and T (time in seconds for one revolution). The experimental values of omega are all listed under the calculated values for omega in the right side of the picture. A comparison chart of these values is shown in Fig. 6. The numbers for the experiments were cut off in the picture, but they are listed in chronological order, all six experiments.


Comparison:
Now that all six values of theta and omega have been calculated, we can compare these values to each other and determine how close our data was experimentally vs calculated. It appears that the data is very close, but one way of determining how close to accurate these values are, would be to graph the data points and then to apply a best fit line to the data. The slope of the graph of the data points should be very close to one. This would tell the user that the data sets were equal to each other and that the experiment was a valid way of determining the angular speed of a system. If you take a look at Fig. 7, you will determine that our calculations/measurements have quite a high degree of error in them, as the result (slope of the line) should have been much closer to one.

Fig. 7 The slope of the best fit line was 0.78, this is not as close to 1.0 as we were hoping for. This means that there was error in our measurements.
Uncertainties in Lab, Assumptions We Made, and What Was Ignored:

It is evident that some uncertainty in this lab became apparent when reviewing the graph and noticing how far off the slope of the best fit line was from 1.0. This was most likely due to some error in the recording of the data. Two of our data points appeared to be off much more than the other points. I used the strike-through data cells in Logger Pro to remove these two points from the best fit line and noticed that the slope of the line became much more closer to 1.0 (see Fig. 8).

Fig. 8 With two of the points being taken out of the factoring of the best fit line, the slope moves much more closer to 1.0.
Other uncertainties came from the measurements in our data. The time had an uncertainty of plus or minus .01 second and the height measurements had an uncertainty of plus or minus .5 cm. These amounts of uncertainty would have caused the data to have some error introduced into our measurements and calculations. The exact moment at which the weight traveled around for 10 revolutions would have varied between each experiment as the recording was subjective based on the person hitting the start and stop button on the watch.

Overall, we learned that we can derive an equation for angular speed from observing a system in class that allows us to measure the speed of an object throughout several revolutions. This equation was then compared to our known equation of 2pi/time. The end result was that our model was an accurate method to determine angular speed and did NOT depend upon mass, but only on the radius, gravity, and the angle.

Saturday, March 28, 2015

Lab 8 - March 28, 2015 - Centripetal Acceleration vs. Angular Frequency

Lab 8:
March 28, 2015
Brandon Elder

Centripetal Acceleration vs. Angular Frequency
Fig. 1 Apparatus used to measure centripetal
 acceleration and time of rotations.

Purpose: Using an accelerometer to measure the amount of time and acceleration of a rotating disk in order to determine the relationship between centripetal acceleration and angular speed.

Set-Up: The apparatus was set up in the front of the classroom and the experiment was performed by the instructor. We recorded all the data as a class so we all have the same numbers. This lab was very short and not much to it other than a few calculations. See Fig. 1 below for a picture of the set-up and apparatus.

The wheel was spun around at various speeds and the amount of time that it took to complete 10 different rotations was recorded. The accelerometer reading corresponding to each rotational speed was also recorded. Lastly, the distance of the accelerometer from the center of the rotating disk was calculated.

Calculations: Six different trials were performed at various speeds set by voltages from the source causing the wheel to spin the disk. See Fig. 2 for all of the data saved and used in the calculations.

Fig. 2 All calculations and data taken for this lab. Each highlighted voltage represents a
different trial of data recorded. The t(0) represents the time the photogate on the first rotation
was passed and the t(10) represents the time the tenth pass took place. The difference of the two
represents the amount of time it took for 10 rotations around the axis and is recorded
next to each trial. The "a = acceleration" which is the centripetal acceleration recorded. The
The formula used in calculating the centripetal acceleration is written at the top of Fig. 2. It is "a=r*omega^2.  Omega is equal to "2*pi radians / time for 1 rotation". The omegas are all calculated and displayed as well above for each speed.  During the lab, acceleration was calculated for us as well as the time for one rotation. We rearranged the formula to solve for the radius. Each calculation was performed and the radius was recorded above as well. The average was taken and determined to be .13685 meters or 13.685 centimeters. We were told by the pro-FESS-OR that the acceptable range was between 13.8 and 14 centimeters.

Lastly, we inputted all our data into a data table in LoggerPro to create a graph of data with acceleration on one axis and the omega value on the other side (see Fig. 3). The data table underneath it (Fig. 4) are the same numbers that were calculated on paper above. The only slight variance is that the best fit line of the graph, which displays the average r value is off by a few thousandths from the calculated r average value.

Fig. 3 Graph of acceleration vs. Omega squared. The average value for the radius is displayed here on the best-fit line.
The value is 0.1372 or 13.72 centimeters. This varies slightly from the value of 13.685 calculated in the notes above.

Fig. 4 Data table with calculated values inputted. The R values are in purple to the right.

Conclusion:

There are a few reasons why the values of R do not add up to what we were told is the acceptable range of R values. Perhaps the tape for the photogate apparatus caused a fluctuation in the acceleration values or the time values. There could have been friction inputted into the system on the wheel causing a force to slow down the wheel more than was expected.



Friday, March 27, 2015

Lab 5 - March 27, 2015 - Trajectories

Lab 5
Brandon Elder
3/27/2015

Trajectories



Purpose: To determine the impact location of a ball launched from a ramp onto a slanted platform that will be placed at the base of the metal ramp. The location will be determined by observing the ball's distance first without the slanted platform and then using kinematic equations to determine the impact location with the platform.


Fig. 1 The apparatus was set up
as seen above. The top
metal ramp was taped
to the bottom ramp. The angle
does not matter for the two
metal pieces so long as it
remains the same.
Fig. 2 Carbon paper on the
ground with the paper to
mark the location of the
ball drops.
Procedure: Set up of the apparatus should be similar to Fig. 1. Place a piece of paper on the ground and use tape to keep it in place. The paper should be in the location that you expect the ball to land at. Let the ball drop from the apparatus once to estimate the correct location for the paper.  Next, tape a piece of carbon paper to the paper so that the location of the ball falling on the paper will be marked from the carbon (see Fig. 2). Once the correct location has been determined and the paper has been taped, choose a starting location for the ball on the top metal ramp to drop the ball from. It is important that the starting location for the ball is the same each time data is collected. This will allow for relatively the same location being marked on the paper as the ball will launch off the ramp with roughly the same velocity. Place the ball and let it roll down and launch it off five different times. The ball will hit the carbon paper and mark a dot on the paper. After five runs there will be five dots on the paper all in relatively close proximity (see Fig. 3). Watch the video below to observe exactly how the apparatus works and notice the ball bounce right on the paper with the carbon taped to it.



Fig. 3 Five dots on the paper relatively
close with one dot a little off.
 This one dot is off because we
ran a 6th trial with the ball at a different
starting location. This proved to
 us that it was critical to have the
starting location be the same for all the runs.







Data Analysis:

Fig. 4 Diagram of apparatus with the
measured height and horizontal distances.
The next step in the process will be to analyze the test results. Measure the horizontal distance on the ground from the base of the ramp edge to the center of the five dots. Record this measurement. Measure the vertical distance from the edge of the ramp to the floor. Record this measurement. Then draw a diagram with the measured distances inputted (see Fig. 4).






Next, using kinematic equations, calculate the time that it took the ball to travel and hit the ground. Once you have the time, you can calculate the speed at which the ball is launching from the ramp. The equation used and the calculations completed can be seen in Fig. 5.

Fig. 5 The equation used to determine
 the time and then the equation used
 to determine the velocity.


Fig. 6 Set up of board to the
apparatus. It is important to note
that the board must rest right up
against the edge of the ramp
from the first part of the experiment.
Now that you have calculated the time and the velocity at which the ball left the ramp, you can perform the next part of the lab. The next part of the lab will be to attach a slanted board to the end of the apparatus and to determine where along the board the ball will land. Measure the angle at which the board is laying against the apparatus. See Fig. 6 for the set up of the new board to the apparatus. The object here is to derive an expression that would allow you to determine the value of "d" (see Fig. 7) given that you know the initial velocity and the angle at which the board is slanted. The formula will look like Fig. 8. This gives you an expression for "d" in terms of the velocity.
Fig. 7 "d" is the distance down the ramp that we are
estimating with our formulas from below.










Fig. 8 Calculations used to determine the formula for "d"





However, velocity is an expression that came from the x distance measurement as well as the y distance which was used to calculate time. The formula must be re-written in terms of all calculated expressions. The calculated measurements were the x-distance, y-distance, and the angle of the ramp. Re-writing velocity results in the expression below, (see Fig. 9).


Fig. 9 The formula for "d" in terms of theta, x, and y.
All that is left at this point is to plug in numbers to decide what the distance of "d" will be, and THEN calculate the uncertainty of course. We just need to take partial derivatives of the equation that we have for d with respect to the three measurements (theta, x, and y). Each partial derivative result will be multiplied by the known uncertainty in each measurement. The sum of all three products will result in the total uncertainty in our calculations. Finally, perform the experiment once more and measure the distance down the board to determine the actual distance. Compare that value to the value that you calculated. Is the data within the amount of "+/-" uncertainty? If so then you have a pretty good proof of just how accurate this experiment was.

Conclusion:

Our data gave us a calculated result of 1.12 meters for how far the point of impact down the board "d" should be. Our uncertainty calculated out to be +/- .0068 meters. When we actually ran the experiment and measured the data we recorded the ball landing at 1.06 meters down the board. This is not within the amount that we had calculated. :(

After recovering from a few days of severe depression following the realization that our experiment had failed, I started to reflect on possible issues for this non-concurrence. One main issue was that the board had been bumped and re-adjusted in-between the measurement of the angle and the performing of the experiment. This would have totally caused the type of error that we witnessed in our final results. The calculations for "d" were determined after we measured our angle theta but before we ran the actual experiment.

Sunday, March 22, 2015

Lab 4 - March 22, 2015 - Modeling the Fall of an Object with Air Resistance

Lab 4:
3/22/2015
Brandon Elder

Modeling the Fall of an Object with Air Resistance

Purpose: This lab is two-part, first we will determine the relationship between air resistance and speed, second we will model the fall of an object including air resistance.

Part 1: First of all, we expect that the force of air resistance can be modeled by some exponential equation, such as below (See Fig. 1).

Fig. 1 The force of air resistance is equal to some constant
times the velocity to some degree.


Fig. 3 The filter reaches
terminal velocity and
no longer requires
acceleration to be factored
into the equation.
In order to measure these unknown terms and to determine the air resistance, we will drop coffee filters (see Fig. 2) from a set height and record the speed at which they float down. At some point along this drop down, they will reach their terminal velocity, where there will no longer be any acceleration (see Fig. 3) acting on the filters, so the sum of forces will be the air resistance equal to some equation we will determine.

Fig. 2 We used a total of 5 coffee filters.












We headed over to the technology building, building 13 because there is a good place to drop the filters from inside where we can record them falling down uninterrupted (see Fig. 4). We set up LoggerPro to capture video for each drop. We started with one filter. Then we added another filter to the first one. We were careful to add each additional filter inside the first one, so we could limit the change in the surface area and shape of the filter being recorded as it dropped down. We repeated this process until we had a video for one to five filters, for a total of five drops.

Fig. 4 The white ledge at the bottom of our feet was measured so that the known distance could be inputted into LoggerPro later as a reference mark for distance. The filters were dropped and allowed to float all the way down to the ground in a straight line.
A video was taken of this entire process and each drop was stored in it's own file. Back in the lab, we evaluated each of these videos. Through LoggerPro, we placed a dot on the falling coffee filter every three frames. The software assigns a time value to the location we click on. The computer stores these points in a location and time table. This is done for each video until the filter either reaches the ground or is very near to the ground (see Fig. 5).

Fig. 5 A dot was placed every few frames
capturing the location of the coffee filter vs time.

Fig. 6 Slope of graphs has the
terminal velocity.
The picture below shows the videos we captured during our data collection and the graph shows our data points acquired through the video capture. The slope near the end of the curve signifies the terminal velocity reached by each of the coffee filters (see Fig. 6). We need the terminal velocity in order to graph the Position vs Time. This process was done 5 times for each of the coffee filters used.

Below is the graph of Speed vs. Force that is used to determine k and n in the equation Air Resistance Force = kv^n (see Fig. 7).
 The third data point was not included because we thought we would get a better correlation if we excluded it. We got 0.007 for k and 1.793 for n.


Fig. 7 Graph of Speed vs Force used to determine
k and n in the equation F=kv^n
Fig. 8 Data plugged into an excel spreadhseet
 set to calculate the terminal velocity.


Calculations: In order to verify that we were able to get the correct values, we put the values of k and n into excel (see Fig. 8) in order to find the final velocity. The results proved to be the same, so it was accurate. Below are our calculations that we did for the experiments. (See Fig. 9). Fig 10 has the equation that we used to determine the weight of one coffee filter.


Fig. 9 All data calculated
from the experiment.



Fig. 10 Calculation used to determine
the weight of one coffee filter.

Summary: First, we dropped the the coffee filter from the top of the balcony so that we could gather the data in order to find the terminal velocity. This was done by capturing videos of the filters falling. Then we found the final velocity by graphing the Position vs. Time for each of the coffee filters. Then we used the terminal velocities to graph the Speed vs. Force which gave us the k and n for the equation Air Resistance Force = kv^n. We then used Excel in order to verify our k and n values which proved to be correct. Overall, this lab proved to be successful since we came to the same results and there could be some uncertainty because interpreting the data can not be 100% accurate. All in all, the air resistance force is directly related to the speed as proved by the lab results.
